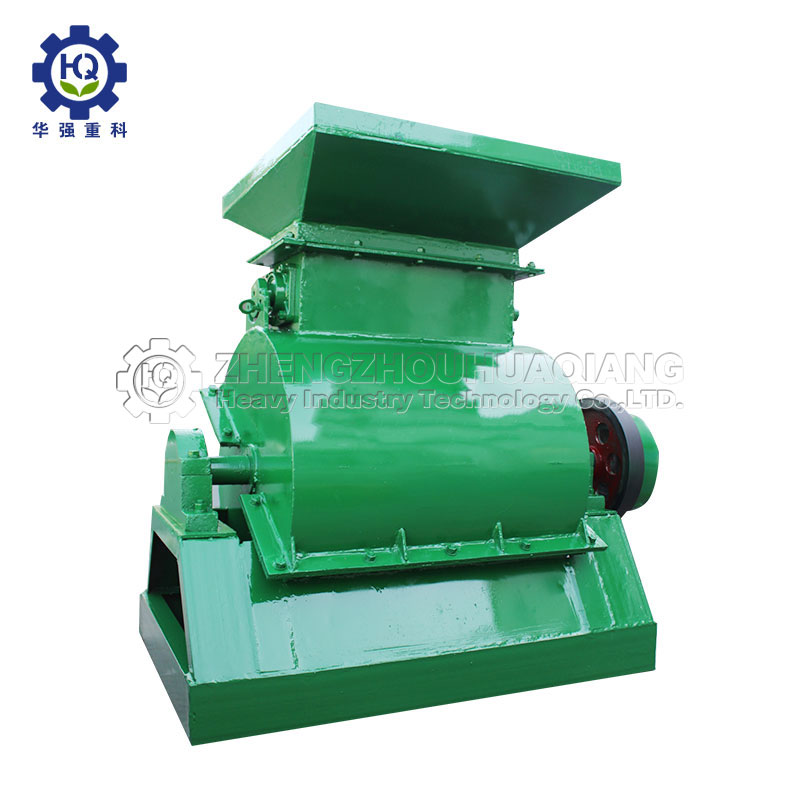

Single Axis Urea Crusher
The single axis ures crusher is a comminution equipment designed to meet the production requirements of high nitrogen compound fertilizer and water-soluble fertilizer for crushing urea. The machine mainly uses the gap between the high-speed running rooler
Model:DFH650 Capacity:1-4t/h
Model:DFH750 Capacity:4-6t/h
Model:DFH900 Capacity:6-8t/h
DETAILS
Intorduction
The single axis ures crusher is a comminution equipment designed to meet the production requirements of high nitrogen compound fertilizer and water-soluble fertilizer for crushing urea. The machine mainly uses the gap between the high-speed running rooler and the concave plate for grinding and shearing. the size of the gap determines the degree of material crushing. After the urea granules enter the machine, the drum is first rotated at a high speed to break the particles against the wall and the baffle of the machine, and then grinded into the powder through the gap between the drum and the concave plate.
Features
The equipment is simple in structure, convenient in operation, samll in dust, high in output, and low in noise. it is ideal matching equipment for producing high nitrogen compound fertilizer and water-soluble fertilizer.
PARAMETERS
| Model | DFH650 | DFH750 | DFH900 |
| Rotor Diameter (mm) | 520 | 600 | 600 |
| Rotor Length (mm) | 650 | 750 | 900 |
| Feed Size (mm) | 30 | 30 | 30 |
| Output Size (mm) | ≤0.2 | ≤0.2 | ≤0.2 |
| Capacity (t/h) | 1-4 | 4-6 | 6-8 |
| Power（kw） | 18.5 | 22 | 30W |
| Rotation Speed （r/min） | 1440 | 1440 | 1440 |
| Host Weight (tons) | 0.8 | 1.1 | 1.3 |
