Vibration Screener Machine

DETAILS

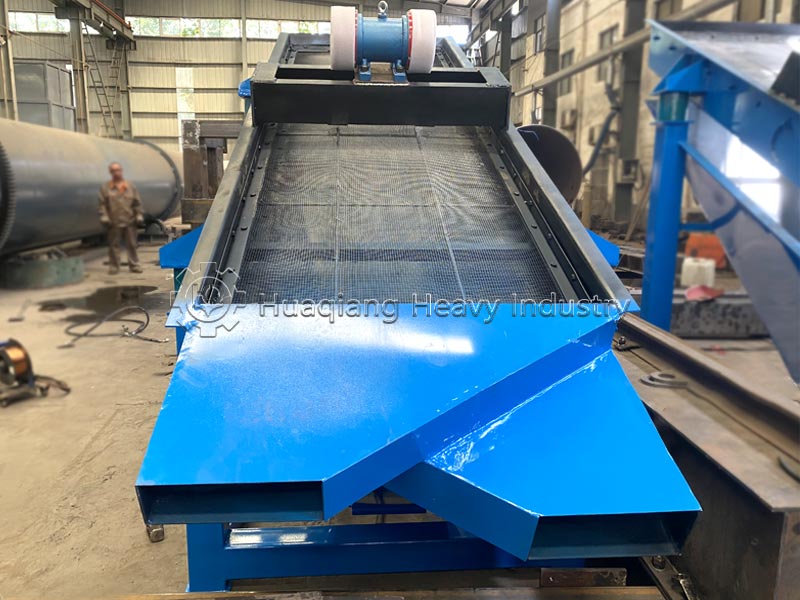

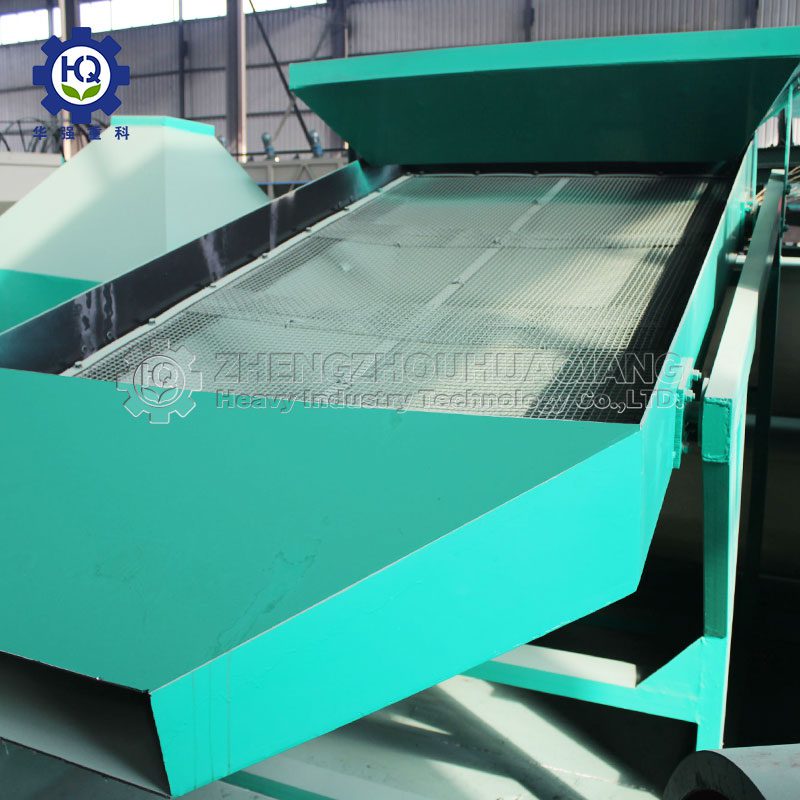

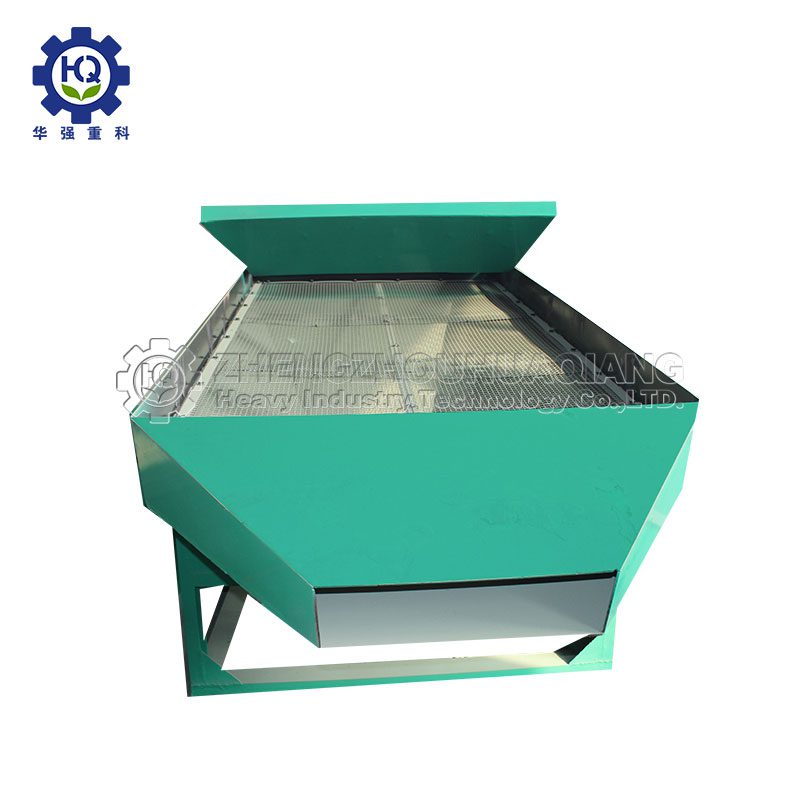

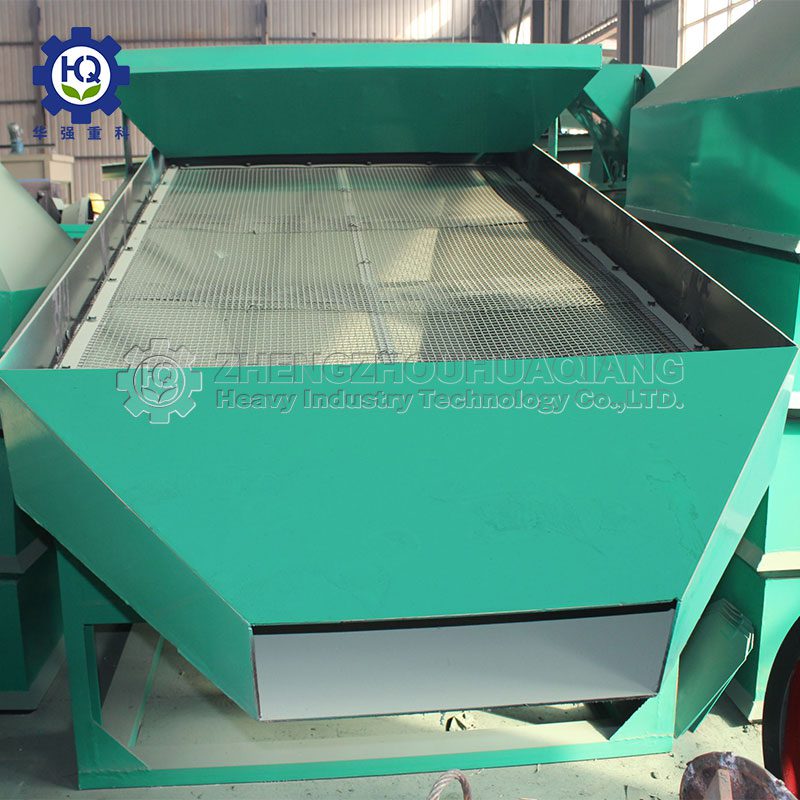

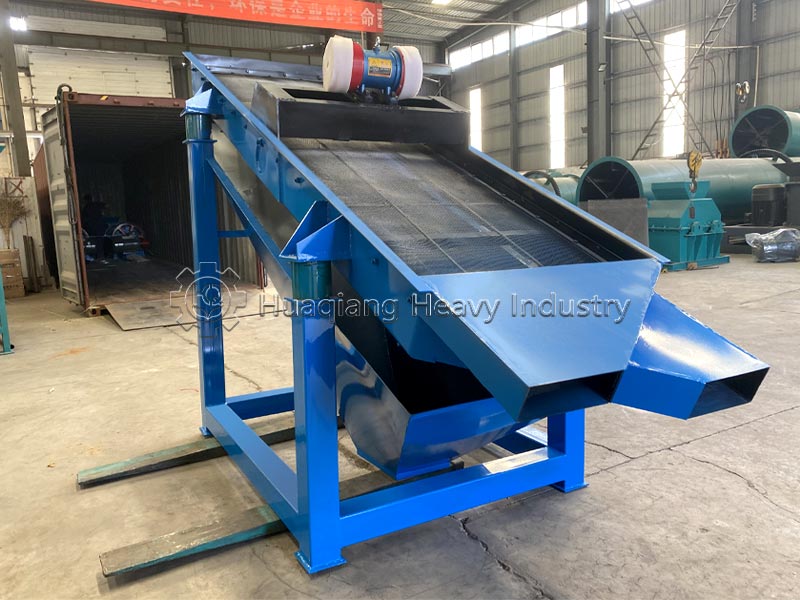

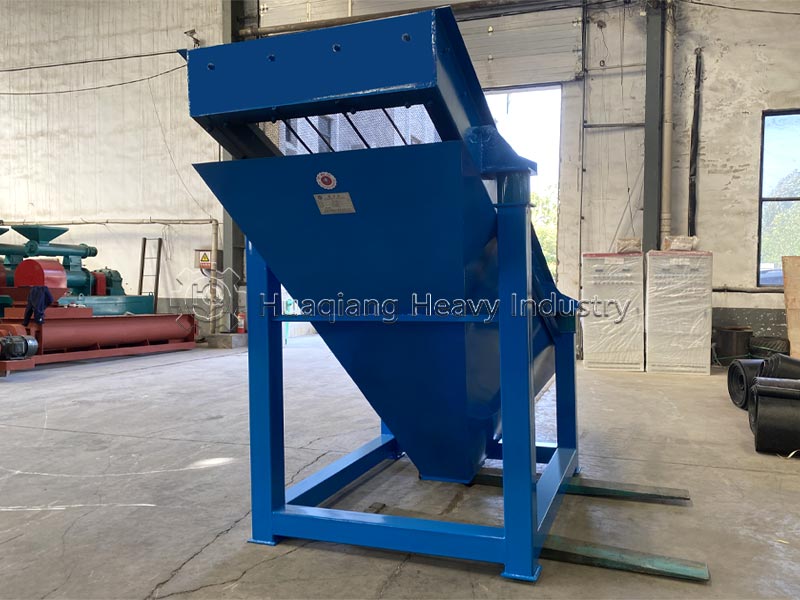

The fertilizer vibration screener machine utilizes the exciting force generated by a vibrating motor to drive the screen body in periodic vibration along a specific direction; this action causes the material to be tossed and move across the screen surface, thereby achieving particle classification and the removal of impurities. Widely used in production lines for various types of fertilizers—such as organic, compound, blended, and water-soluble fertilizers—this equipment is typically positioned between the cooler and the packaging machine, serving as the final quality control step before the finished product leaves the factory.

What are the structural components of a fertilizer vibration screener machine?

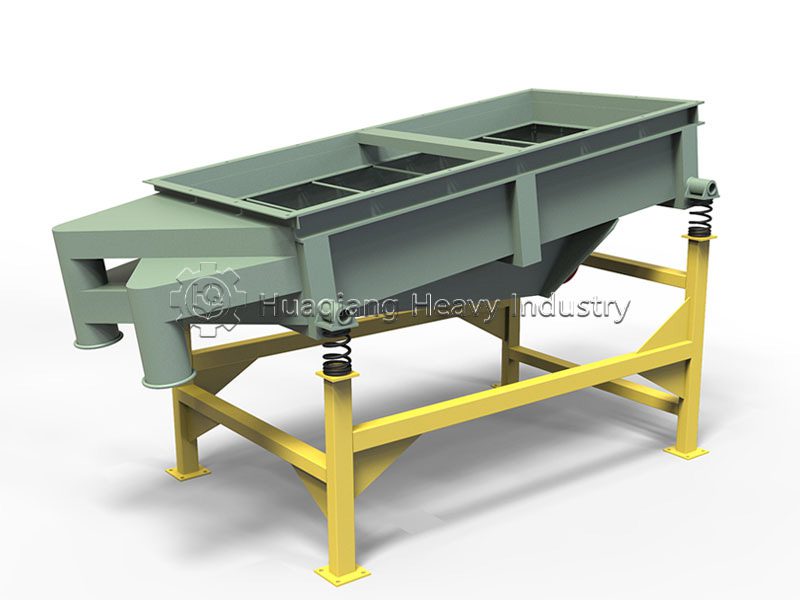

Regardless of the specific type, the basic structure of a fertilizer vibration screener comprises the following components:

Screen box: Fabricated from welded or cold-riveted steel plates, this is the main structural component that supports the screen mesh and the material; it must possess sufficient strength and rigidity.

Screen mesh: The working surface that comes into direct contact with the material. Materials include carbon steel and stainless steel (304/316); given the often corrosive nature of materials in the fertilizer industry, 304 stainless steel or polymer mesh is recommended.

Vibrating motor or exciter: The core component that generates the vibration. Dual-shaft inertial exciters feature precision-cast steel housings, offer high load-bearing capacity, and are capable of continuous operation in high-temperature and high-dust environments.

Damping springs: Typically rubber isolation springs are used to prevent vibration transmission to the ground while supporting the weight of the screen box; they ensure low noise levels and smooth operation when passing through the resonance zone.

Support frame: Composed of support pillars and channel steel, this structure supports the entire screening unit.

What are the application scenarios for fertilizer vibration screener machines?

Fertilizer vibration screener machines play multiple roles in the fertilizer production chain:

Grading of finished products: Sorting dried and cooled fertilizer by particle size to separate compliant granules, fines, and large impurities.

Impurity removal: Eliminating impurities such as stones and hardened straw clumps to enhance product purity.

Fines recovery: Separated fine powder can be directly returned to the granulation process for reuse, thereby reducing raw material waste.

Production of premium commercial fertilizer: Multi-deck vibrating screens can simultaneously separate materials into two or three different specifications, meeting the strict particle size uniformity requirements for bagged fertilizers intended for sale.

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

What are the advantages of specialized vibration screener machines for fertilizer?

High screening efficiency and resistance to mesh clogging

High-frequency bouncing vibrations break up moist, sticky fertilizer; unlike static screening equipment, fermented wet fertilizer does not adhere to the screen apertures. Bouncing balls can also be installed to continuously tap the underside of the screen and clear away residual material.

Corrosion-resistant design suitable for fertilizer processing environments

Parts in contact with fertilizer are made of 304 stainless steel to withstand corrosion from organic acids found in livestock manure; models made of standard carbon steel feature a wear-resistant, anti-corrosive coating to minimize rust and wear.

Supports multi-stage material sorting in a single pass

Up to five screen decks can be installed, allowing for the separation of multiple fertilizer particle sizes in one operation; this eliminates the need for multiple screening machines and saves both workshop floor space and equipment procurement costs.

Fully enclosed, dust-proof structure improves the workshop environment

The sealed screen box design prevents fertilizer dust from escaping, meeting environmental production standards; a dust-free screening station can be created by pairing the unit with a pulse dust collector.

Low energy consumption and simple maintenance

The vibrating motor consumes little power; the screen assembly is designed for easy disassembly, allowing workers to replace screens in under ten minutes; shock-absorbing springs dampen vibration, resulting in a low equipment failure rate.

Compatible with automated production lines

The discharge outlet connects directly to belt conveyors, allowing screened fertilizer to be transported straight to twin-shaft mixers, granulators, or automatic packaging machines, enabling a fully automated, hands-free material handling process.

PARAMETERS

Model	ZS1×3	ZS1.2×4	ZS1.4×5
Screening area (m²)	3	4.8	7
Prod capacity (t/h)	3-5	5-8	8-15
Motor power (kW)	1.5	2.2	1.5×2
Vibration Frequency (r/min)	960	960	960
Amplitude(mm)	4-6	4-6	4-6
Dimensions LxWxH (m)	3.4×1.5×2.7	4.1×1.6×3.8	5.4×1.7×4.1
Equipment Weight (kg)	1850	3500	4500
