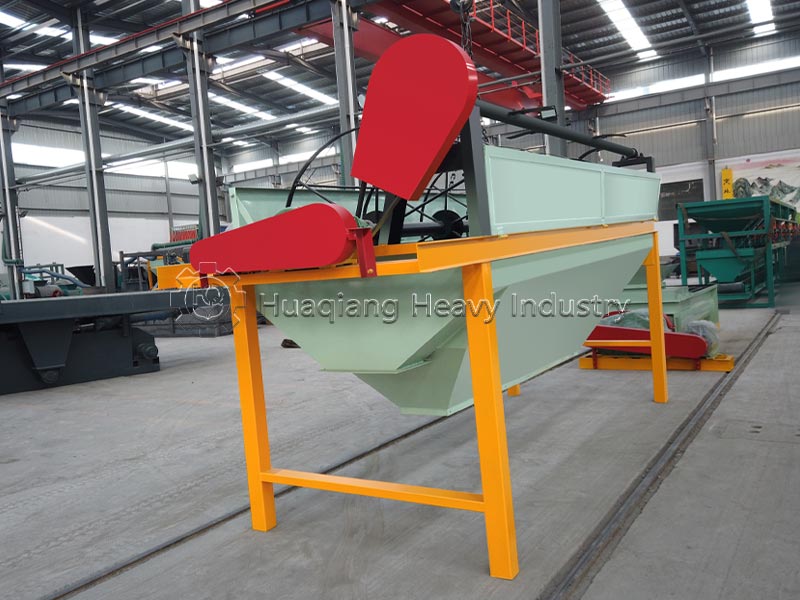

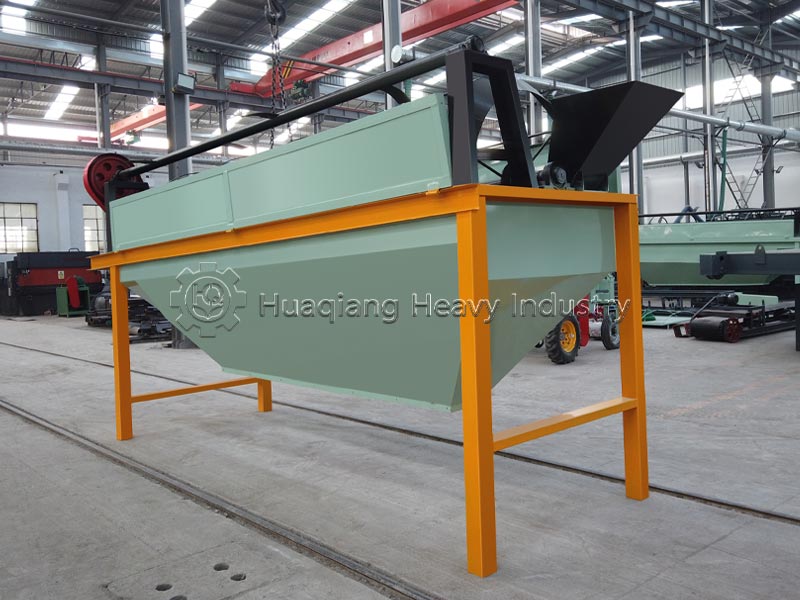

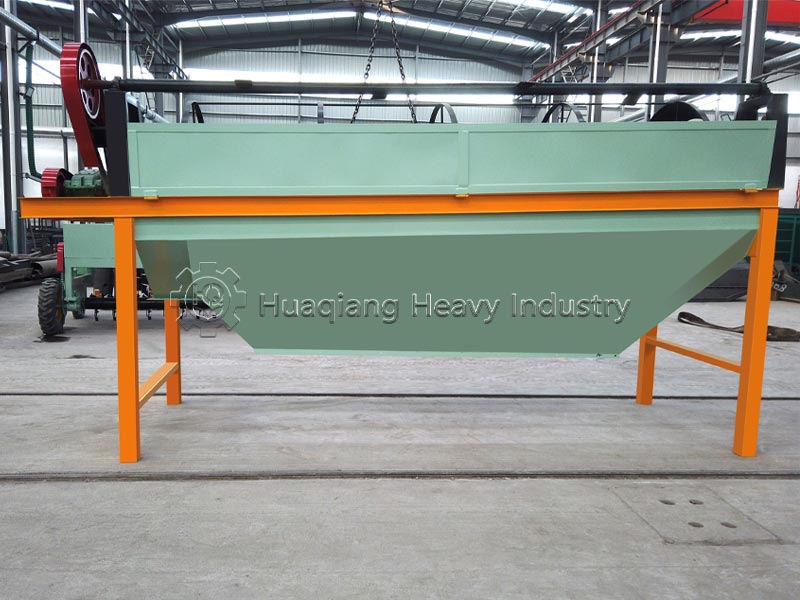

Rotary Screener Machine

Rotary drum screening machine is common equipment in compound fertilizer production, mainly used for separating the returned materials and finished product, also realize the classification of the end products, and even classify the end products.

Model: GS1.0×3.0/GS1.2×4.5/GS1.5×5.0

Power 2.2kw/3.0kw/5.5kw

Production Capacity 1-3/3-5/5-10

SEND E-MAIL

DETAILS

Intorduction

The series of drum-type sieve is the common equipment used in the production of compound fertilizer, which is mainly used for separating finished products and return materials, but also to achieve the product classification, the finished product is evenly classified, the machine uses a combined screen, easy maintenance and replacement, it's simple structure, convenient operation, stable running,so it is ideal compound fertilizer production equipment

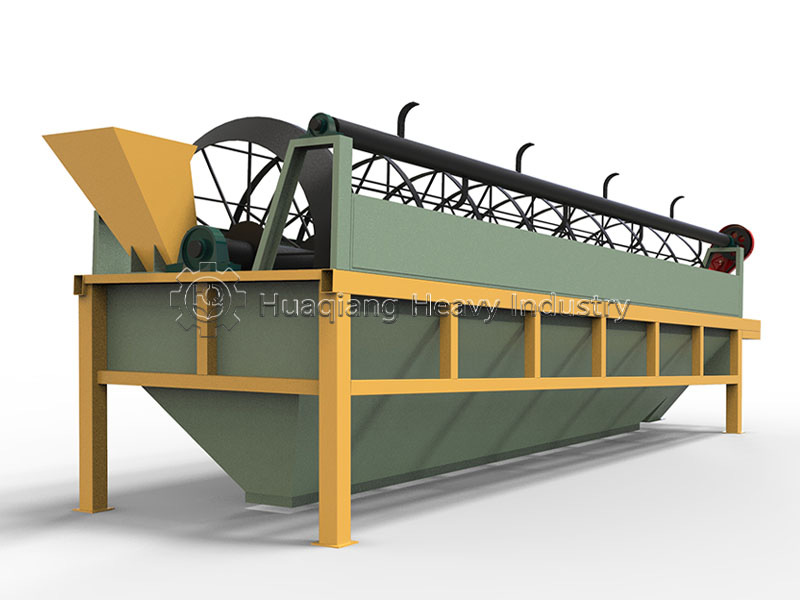

Brief introduction to the structure of roller screen.

The machine can be divided into three parts

Rack part: The machine frame are made of excellent carbon steel plate, welded by the channel, and pass a rigorous product certification and specific process requirements, has reached the purpose of the use of the machine;

Transmission screening section: This part uses a modular screen, which is transmitted by the transmission wheel through the coupling to the main shaft, the screen is installed and welded on the main shaft of the cage. The material enters feeding port, it is continuously rotated and graded in roller, and the material is uniformly discharged from the discharge port, this machine effectively separates the finished product from back material, thereby improving the working efficiency;

Transmission connection: motor drive pulley, V-belt, reducer transmission, so that the spindle rotation work,the working parts of transmission reducer with the host, they all adopt pin-type connector phase clutch transmission drive, convenient assembly and maintenance.

PARAMETERS

Model	Barrel		Rotation Speed	Inclination	Power	Capacity	Dimensions	Weight
	Diameter	Length	Rotation Speed	Inclination	Power	Capacity	L× W × H	Weight
	mm	mm	r/min	0	kW	t/h	mm	tons
GS1.0×3.0	1000	3000	22	2-2.5	2.2	1-3	3500×1400×2200	1.5
GS1.2×4.5	1200	4500	17	2-2.5	3.0	3-5	5700×1600×2400	2.5
GS1.5×5.0	1500	5000	14	2-2.5	5.5	5-10	6860×1900×2810	3.8
GS1.0×3.0	1000	3000	22	2-2.5	2.2	10-20	3500×1400×2200	1.5
GS1.6×6.0	1600	6000	12	2-2.5	7.5	10-20	7300×2000×3000	4.7
GS1.2×4.0	1200	4000	16	2-2.5	3.0	20-25	5200×600×2360	2.3
GS1.8×6.5	1800	6500	11.5	2-2.5	7.5	20-25	9000×2200×3200	6.0
