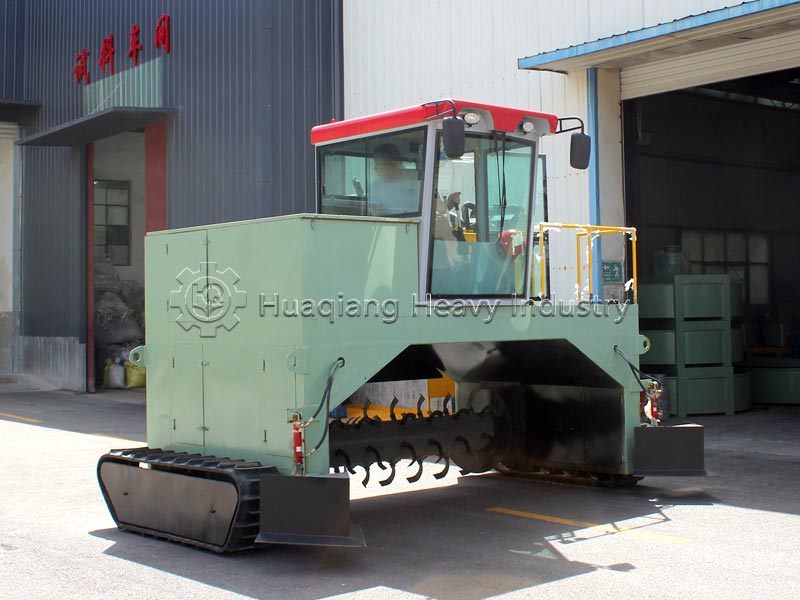

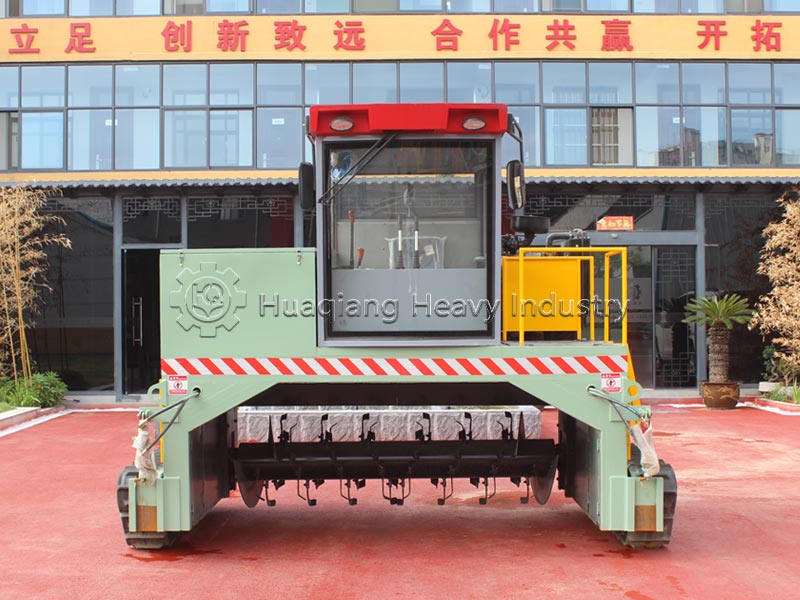

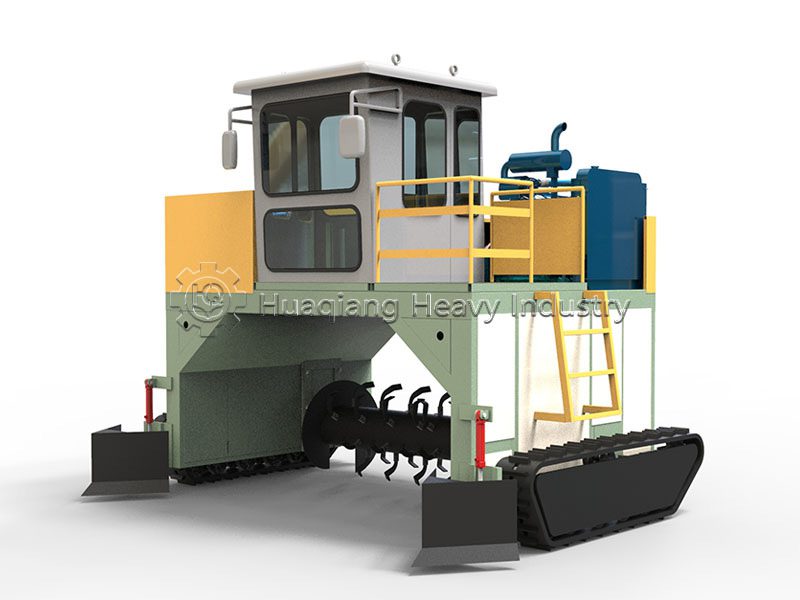

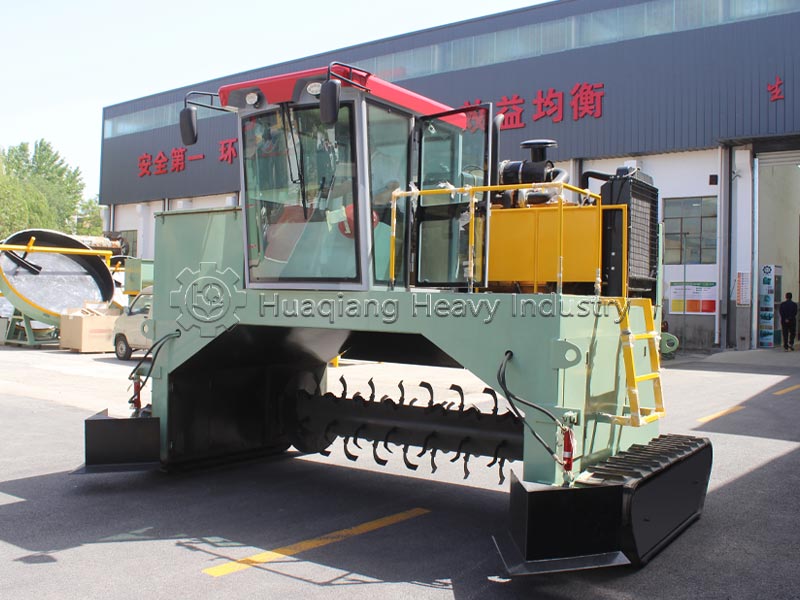

Windrow Compost Turning Machine
Introduction: Our company is dedicated to providing users with complex fertilizer equipment technology services.
Model: WF-FD 2300/WF-FD 2600/WF-FD 2800
Power R4102 turbocharged75 diesel engine
Power R4108 turbocharged116 diesel
DETAILS
Introduction
Our company is dedicated to provide users with complex fertilizer equipment technology services. At present, after many years of experience in manufacturing compound fertilizer granulator equipment, it has been manufactured with high-quality antiseptic and wear-resistant materials, with beautiful appearance and operation. The operation is simple, and it has low energy consumption, with the long life, high granulation rate, it’s more advanced compound fertilizer granulation equipment, products throughout the country.
Features
1. The machine adopts hydraulic operation system, tie-rod type steering wheel operation and crawler-type travelling. The working width is up to 3m and the height can reach 1.3m.
2. Crawler-type compost turner has strong working capacity and large production, suitable for large organic fertilizer factories.
3. This turner is sturdy and durable, with strong power and advanced technology, thus the machine is recognized as the strong one among compost turner.
4. Its travelling relies on crawler, the turning roller adopts hydraulic lift adjustment, with high degree of automation and easy operation.
5. This compost turner is a kind of professional turning equipment of transforming organic materials into organic fertilizer through aerobic fermentation.
PARAMETERS
| FDJ－L2300 | FDJ－L2400 | FDJ－L2500 | FDJ－L2600 | FDJ－L3000 | |
| Width(m) | 2.3 | 2.4 | 2.5 | 2.6 | 3.0 |
| Height(m) | 0.6-0.8 | 0.7-0.9 | 0.8-1 | 0.8-1.1 | 0.9-1.2 |
| Stack spacing (m) | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 |
| Power | R4102-48KW/65HP | R4102-60KW/80HP | R4108-75KW/100HP | 4108/75-80 KW/115HP | 6105/-110KW/140HP |
| Biggest speed(r/min) | 2200 | 2400 | 2400 | 2200 | 2200 |
| Rated power speed(r/min) | 2200 | 2200 | 2200 | 2200 | 2200 |
| Driving speed(m/min) | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
| Working speed(m/min) | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Working knife diameter(mm) | / | 500mm | |||
| Processing capacity(m3/h) | 500-700 | 700~1000 | 700~1100 | 1000~1200 | 1000~1500 |
| Overall size(m) | 3.4X2.6X2.75 | 3.5X2.6X2.75 | 3.6X2.6X2.8 | 3.8X2.7X3.0 | 4.2X2.7X3.0 |
| Turbocharged | Turbocharged | Turbocharged |
